Details
KEY FEATURES:
- Patron eRIDE Alloy Frame
- RockShox Domain 160mm Fork
- FOX Float EVOL eRIDE, 160mm, TwinLoc
- Shimano XT-Deore 12 Speed
- Bosch CX, 750Wh PowerTube / SmartSystem
- SRAM DB8 4 Piston Disc

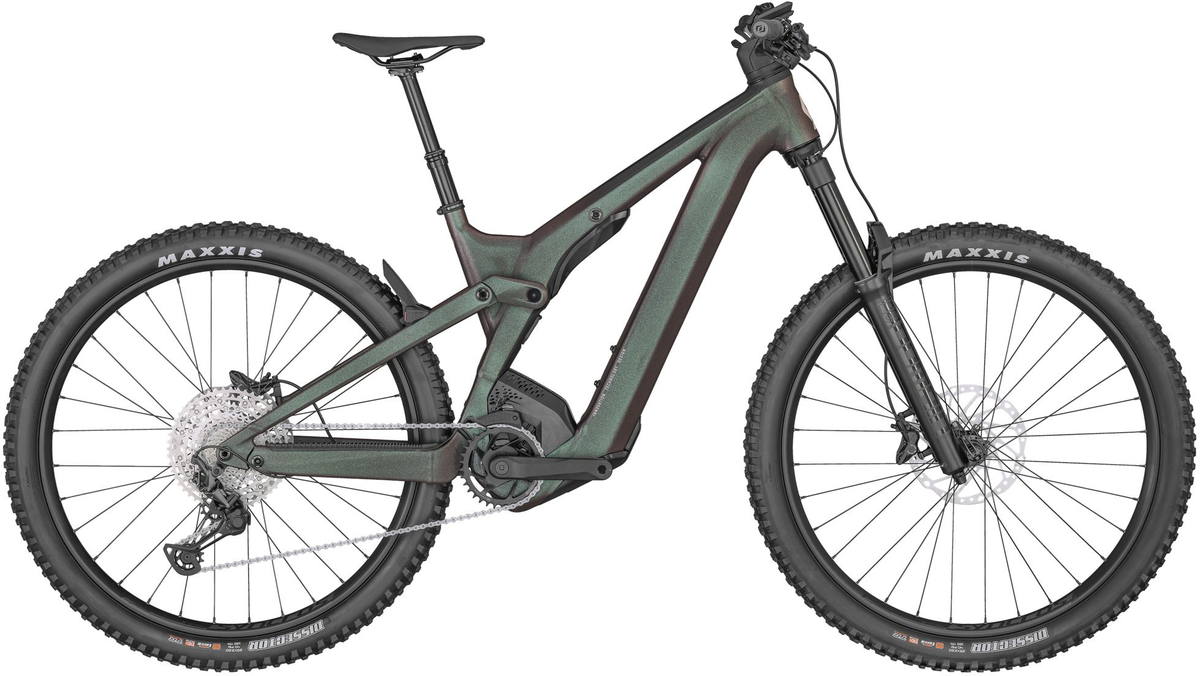

The Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE—boss the trails.
*Please note that bike specifications are subject to change without prior notice

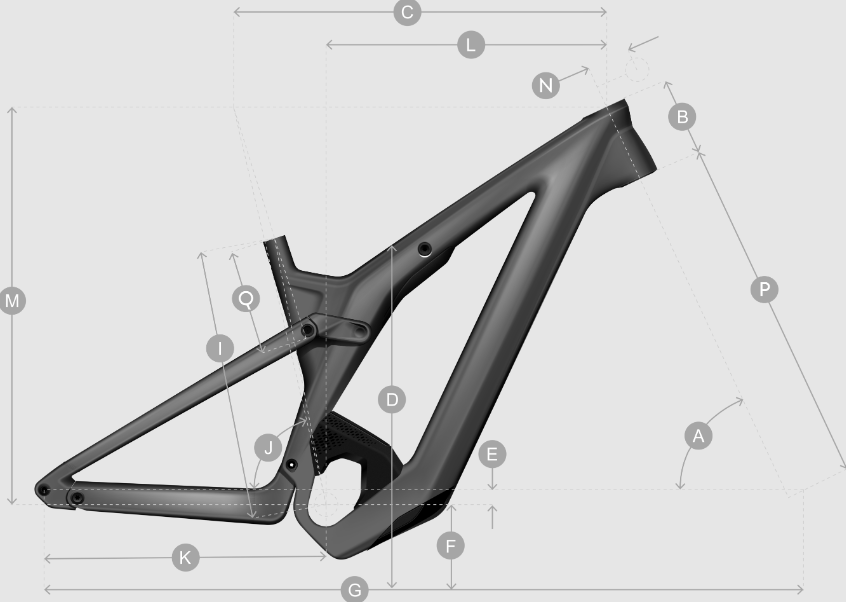

Frame Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
A — Head Tube Angle | 64.5° | 65° | 65° | 65° |
B — Head Tube Length (mm) | 120 | 125 | 135 | 145 |
C — Top Tube Horizontal (mm) | 579.4 | 595 | 625.6 | 656.4 |
D — Standover Height (mm) | 766 | 766 | 766 | 766 |
E — Bottom Bracket Offset (mm) | -30 | -30 | -30 | -30 |
F — Bottom Bracket Height (mm) | 347 | 347 | 347 | 347 |
G — Wheelbase (mm) | 1221.7 | 1231.7 | 1263.7 | 1295.4 |
H — BB Center to Toptube Center (mm) | ||||
I — BB Center to Top of Seattube (mm) | 410.5 | 440.5 | 470.4 | 500.4 |
J — Seat Angle | 77° | 76.9° | 76.9° | 76.8° |
K — Chainstay (mm) | 454 | 454 | 454 | 454 |
L — Reach (mm) | 432.7 | 445.8 | 473.6 | 501.2 |
M — Stack (mm) | 634.8 | 642.2 | 651.3 | 660.4 |
N — Stem Length (mm) | 50 | 50 | 60 | 60 |
O — Trail (mm) | 133.3 | 129.5 | 129.5 | 129.5 |
P — Fork Length (mm) | 567.1 | 567.1 | 567.1 | 567.1 |
Q — Maximum Seatpost Insertion (mm) | 245 | 265 | 300 | 320 |
R — Crank Length (mm) | 165 | 165 | 165 | 165 |
Specs
Frame | Alloy Frame & Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable |
---|---|
Fork | RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike |
Rear Shock | FOX Float EVOL eRIDE Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 160mm / 205x60mm |
Rims | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
Hubs |
Front: Formula CL-811 / 15x110mm Rear: Formula ECT-1481 / Boost 148x12mm |
Spokes | Stainless Black |
Tires | Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
Crankset | FSA CK-745 165mm / 34T |
Chainrings | FSA W0138+WB499 / 34T / Steel |
Shifters | Shimano SL-M6100 |
Rear Derailleur | Shimano XT / 12 Speed |
Cassette/Freewheel | Shimano CS-M6100 / 10-51 T |
Chain | Shimano CN-M6100 |
Brakes | SRAM DB8 4 Piston Disc |
Rotors | Centerline CL Rotors 200mm F&R |
Handlebars | Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Endurance lock-on grips |
Stem | Syncros AM2.0 / 6061 Alloy 31.8mm / 4° / 1 1/8" |
Headset | Acros / 1.8" ZS66 OD74 / integr. Cable |
Seatpost | Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
Saddle | Syncros Tofino 2.5 Regular |
Pedals | Sold separately |
Accessories & Extras | Lights: Syncros integrated rear fender light Front Light Cable pre-installed |
Motor | Bosch Performance CX EU: 25kmh / INT: 20mph |
Battery | PowerTube 750Wh |
Controller/Display | SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes / Bosch LED Remote & Kiox 300 |
Charger | 4A Charger |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / Medium | 192820748986 | 290555008 | 210000011387 |
